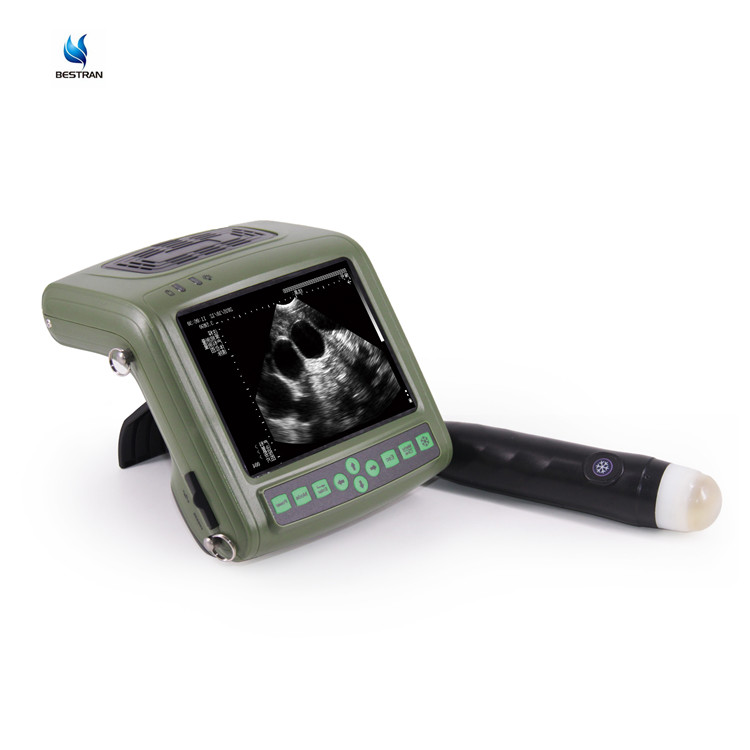

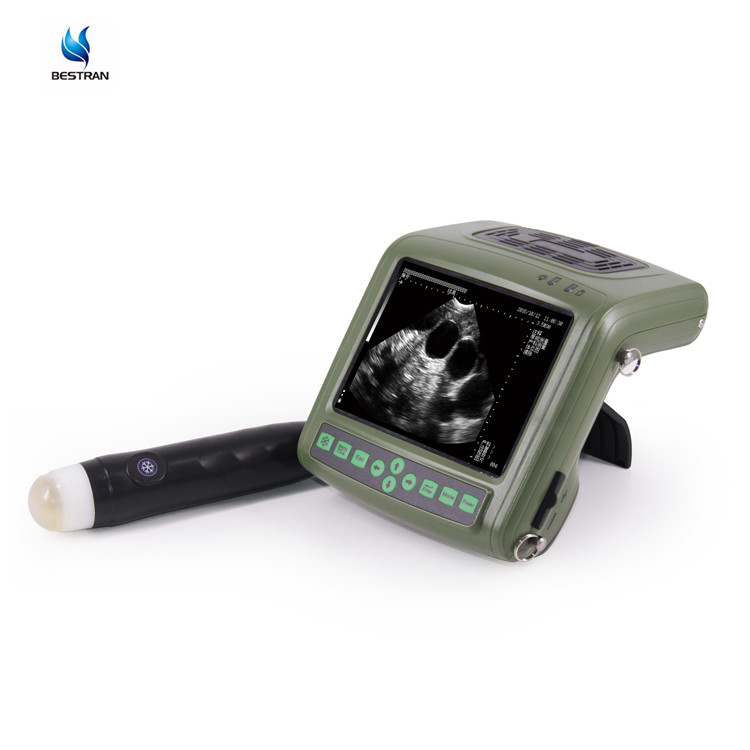

Sheep & Pigs Ultrasound Machine Portable Livestock Scanner For Pregnancy & Health Checks
Sheep & Pigs Ultrasound Machine Accessories:
|
Standard
|
l Main unit: 1 pc
l 3.5MHz waterproof mechanical sector probe : 1 pc.
l Power adapter: 1 pc
l Internal battery : 1 pc
l leather case: 1 pc
l Base Charger, belt, bracket, shutter release: 1 pc for each.
|
|
Optional
|
l USB flash disk
l Mouse
l Thermal printer (P93W-S)
l Battery(2400mAH)
l Black suitcase
|
Sheep & Pigs Ultrasound Machine Features:
l Economic price.
l Wrist design: truely innovative.
l Smart and light : 5.7" high resolution color LCD , 1.1kg weight.
l Menu operation. Very easy.
l 1 pcs Internal li-battery: work for 200 minutes.
l USB port: directly store image to U disk.
l Splash-proof, dust-proof, unique window radiator, avoid farmhouse cross infection.
Sheep & Pigs Ultrasound Machine Technical Specification:
l Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
l 5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use.
l Language: Chinese/English switchable.
l Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
l Display mode:B,2B,4B ,B/M,M, total 5 kinds.
l 5 kinds of Magnification, maximum display depth is 200mm.
l Gain range:0～127dB
l Dynamic range:27～90dB
l Gray:256
l Frame frequency:30 frames/second.
l Pseudo-color: 8 kinds (incl. B/W).
l Local zoom and coloring.
l Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
l Net weight:1.0kg.
l Main unit size:155x180x80mm(length x width x height).
Sheep & Pigs Ultrasound Machine mage storage:
l Permanent image storage: 100 frames.
l USB port support one-key storage image to USB.
Sheep & Pigs Ultrasound Machine Measurement and analysis:
l Puncture guiding function,( 2 guiding lines, angel and position adjustable)
l General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
l Cardiac measurement: depth, slope, heart rate, time.
l OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
l OB report function
Sheep & Pigs Ultrasound Machine Power supply:
l Dual power supply. Power:AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.
l Battery: two pcs of high-capacity lithium Battery( ２４００MＡｈ) ,more than 400 minutes work
Sheep & Pigs Ultrasound Machine Advantages:
Portability for Farm Efficiency
- Lightweight & Handheld: Carry easily between pens or remote farms—no fixed installation needed.
- Battery-Powered: Operates without mains power, ideal for fieldwork or areas with limited electricity.
Fast & Accurate Results
- Real-Time Imaging: Instant visuals for quick decision-making (e.g., breeding management, illness detection).
- User-Friendly Interface: Simple controls with preset modes for sheep/pigs, reducing training time.
Durability & Cost Savings
- Rugged Build: Waterproof probe and shock-resistant body for harsh farm environments.
- Reduce Vet Costs: Minimizes expensive lab tests or vet call-outs with on-site diagnostics.
