Portable B/W USG Veterinary Ultrasound Machine For Fast Diagnosis In Clinics & Farms
Veterinary Ultrasound Machine Accessories:
|

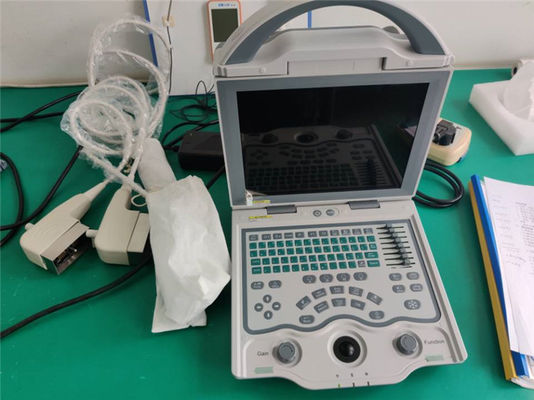

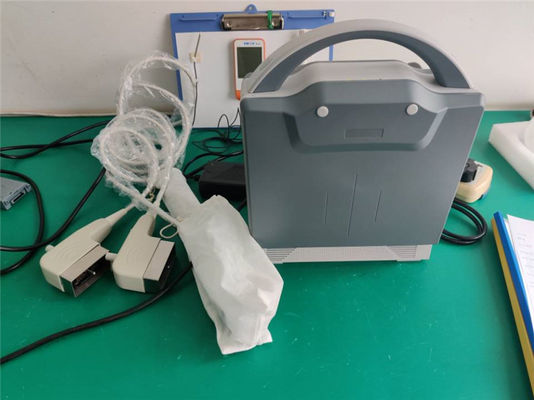

Veterinary Ultrasound Machine
Standard
|
l Main unit 1pc；
l 6.5MHz linear rectal probe (4.5/5.5/6.5/7.5 MHz) 1pc；
6.5MHz depth:60mm, if change frequency: 50-105 mm.
l Power supply adaptor 1pc；
l Reticle 1pc;

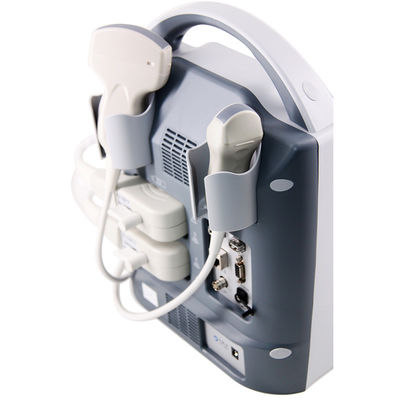

l Two probe sockets
|
|
Veterinary Ultrasound Machine
Optional
|
l Optional probes
1)6.5MHz micro-convex probe (5.0/6.5/7.5/9.0 MHz)
6.5Mhz depth:60mm, if change frequency: 50-105mm
2)3.5Mhz loin muscle linear probe (2.0/2.5/3.5/5.0 MHz)
3.5Mhz depth: 180mm, if change frequency: 160-190mm
3)3.5MHz convex probe (2.0/2.5/3.5/5.0 MHz)
3.5MHz depth:170mm, if change frequency: 120-190 mm.
4)7.5MHz linear probe (6.0/6.5/7.5/9.0 MHz)
7.5MHz depth:60mm, if change frequency: 50-105 mm.
5)4.0MHz convex rectal probe (2.0/2.5/4.0/5.0 MHz)
4.0Mhz depth:170mm, if change frequency: 120-190 mm.
l Battery charger
l Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
l trolley
l Video printer(UP-897MD)
l Ethernet Switch
|
Veterinary Ultrasound Machine Tech Parameters:

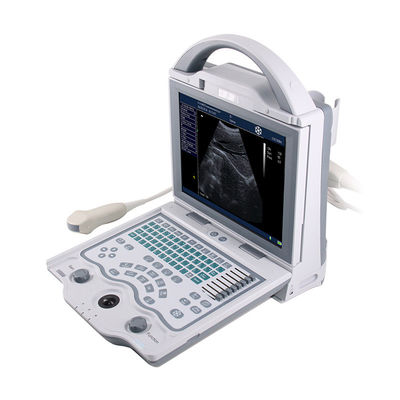

l 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle；
l Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
l Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese；
l Two probe sockets, auto-identify different optional probe；
l Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position；
l Display mode:B,2B,4B ,B/M,M ；
l Adjustable depth: 10 grades, max depth to 236mm；
l Gain:0～127dB；
l Contrast:27～90dB；
l Gray scale:256；
l 8 steps intelligent TGC；
l 8 kinds pseudo colors；
l Image storage: 16G hard disk to permanently store about 20000 frames images；
l Cine loop:256 frames；
l Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)；
l the gravel software package with real-time position line measurement
l Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
l Cardio measurement:Depth, slope, heart rate, cycle；
l OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth；
l Other measurement: pig’s meat factor measurement；
l OB report function；
l One-key store: concise and practical;
l One-key review:fast, practical image review function;
l One-key Print；
l One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
l Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)；
l Unique One-key-light keyboard function for black room use;
l Display brightness adjustable；
l Dual TV output: PAL/NTSC, can connect video printer when necessary；
l Power supply:100-240V～ 1.2-0.6A frequency:50-60Hz；
l Power supply adaptor output:DC12.8V 3.0A；
l Main unit weight:3.5 kg(without accessories)；
l Main unit dimension:256×150×326mm(L×W×H)；
l BT-VUD60 probe scanning depth:
3.5Mhz convex probe: 110-236 mm
7.5MHz linear probe: 42- 104 mm
6.5Mhz rectal linear probe: 49-111 mm
6.5Mhz micro-convex probe: 49-111 mm
Veterinary Ultrasound Machine Advantages:
1. Portability & Versatility
- Lightweight & handheld design for easy transport between clinics, farms, or field visits.
- Universal use for small animals (dogs/cats) and livestock (cattle/horses/sheep).
2. Fast & Efficient Diagnosis
- B/W ultrasound imaging provides clear, real-time scans for quick assessments (pregnancy checks, organ health, injuries).
- Instant results reduce waiting time compared to lab tests, improving workflow efficiency.
3. Ideal for Clinics & Farms
- Clinics: Perfect for routine pet exams and emergency cases.
- Farms: Essential for livestock breeding, pregnancy monitoring, and herd health management.
