Created with Pixso. Intelligent Surgical Light With Auto Shadow Compensation & Dual Lamp Control

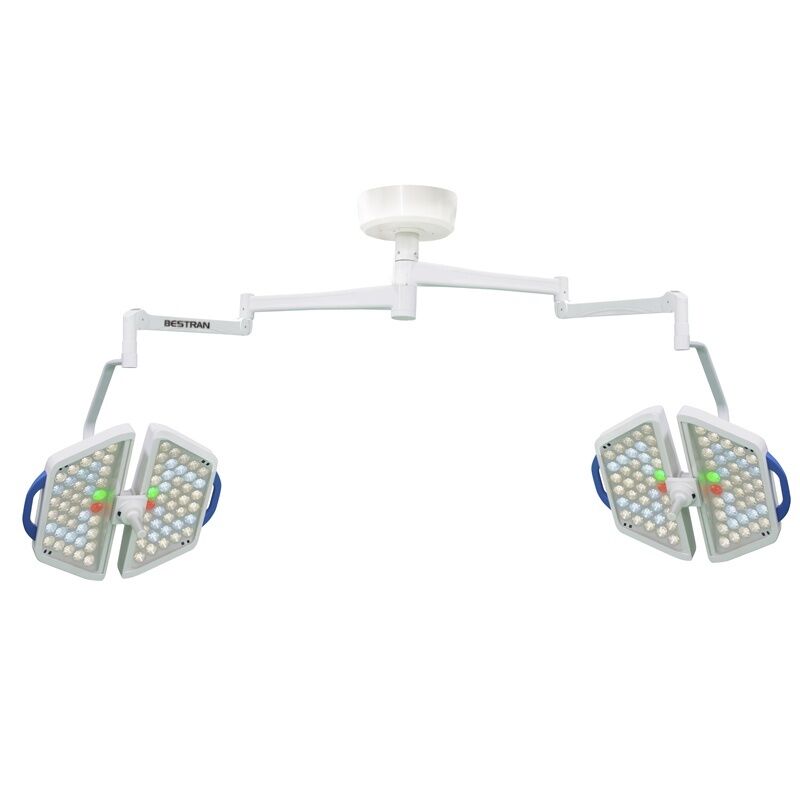

Intelligent Surgical Light With Auto Shadow Compensation & Dual Lamp Control

Brand Name: Bestran
Model Number: BT-LED320320
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
LED Surgical Light
Auto Shadow Compensation:
Yes
Lamp Control:
Dual
Colour Rendering Index:
95
Screen:
Touch
Voltage:
AC100-240V,50-60Hz
Power:
100W
Anti-Corrosion Housing:
ABS
Packaging Details:
1250*630*300mm, 20KG,1pc/plywood case
Supply Ability:
500pcs per Month
Product Description

Intelligent Surgical Light With Auto Shadow Compensation & Dual Lamp Control


LED Surgical Light Advantages

1. Automatic Shadow Compensation for Uninterrupted Precision

  • Continuous Optimal Illumination: Proprietary intelligent sensors detect obstructions in real-time and instantly adjust brightness to eliminate shadows, ensuring consistent ideal lighting throughout the procedure.

  • Enhanced Surgical Flow: By eliminating manual adjustments mid-procedure, surgeons maintain full focus on the operative field, promoting safety and efficiency.

2. Integrated Dual Lamp Control for Synchronized Teamwork

  • Unified Command System: From a single touchscreen interface, control all parameters — including power, intensity, color temperature, and focus — for both the primary and secondary surgical lights.

  • Streamlined Operational Efficiency: This centralized control enables perfect lighting synchronization for the entire team without breaking sterility or requiring verbal coordination, reducing setup time and cognitive load.

3. Advanced Foundation for Modern Surgical Environments

  • High-Fidelity LED Performance: Delivers exceptional color rendering (CRI >95) and uniform illumination, supporting accurate tissue differentiation.

  • Hygienic & Ergonomic Design: Features a seamless, easy-clean housing and smooth 360° positioning to support sterile protocols and reduce physical strain.


LED Surgical Light Parameter
Illuminance ≤160000Lux/≤160000Lux
Color temperature: 4000-5700K/4000-5700K
Color reduction index(Ra) 85-98 adjustable
Size of light field 160-351mm
Illuminance depth ≥1200mm/≥1200mm
Focusing method Electric/Electric
Service life of illuminant 5100,000h
Input Power 400W
Total  LED bulb  quantity 160pcs(1W/pc*80pcs+1W/pc*80pcs);
Lowest height of installation 2800mm



LED Surgical Light Description

1.Utilizes LED cold light technology; each LED light source has an individual lens for focusing.
2.New Diamond-Surface Lens Design:** Superior optical design, more aesthetically pleasing, higher luminous efficiency, and less glare.
3.Ultra-thin Hollow Lamp Head:** Provides excellent laminar flow penetration. Meets DIN1946-4 requirements for laminar flow operating room infection control.
4.Two Integrated Operating Handles on the Outside of the Lamp Head:** Facilitates movement of the surgical lamp by personnel in non-clean areas, while preventing residual contamination at seams during cleaning by medical staff, ensuring effective sterilization.
5.Luxury Spring Arm:** Sturdy, durable, lightweight, and flexible, allowing the lamp head to rotate easily 360° and be precisely positioned for optimal illumination. The wide range of arm movement makes it suitable for operating rooms with varying architectural conditions.
6.Electronic Focusing Function:** Adjusts the beam pattern via the controller panel.
7.Automatic Illumination Compensation Function:** Humanized intelligent shadow compensation technology automatically compensates for brightness loss in the surgical field when the surgical light is obstructed by the surgeon's head, ensuring ideal illumination for the surgical area.
8.Humanized Intelligent Shadow Compensation Technology:** Lamp head interoperability function: This function allows for control of both the lamp itself and another lamp via the touchscreen. It enables functions such as switching another surgical lamp on/off, adjusting color temperature, brightness, and spot size.
9.RGB color compensation function: R (Red) function: Saturated red corresponds to R9 in the color rendering index. Red light helps to better distinguish blood vessels. Using 610nm red light can promote wound healing and has a therapeutic effect on skin infections. G (Green) function: Saturated green corresponds to R11 in the color rendering index. This function compensates for the R11 value to achieve the full spectrum standard.
10.Suitable for use with LCD display and button control, allowing for adjustment of power, illuminance, and color temperature to meet the brightness requirements of medical staff for different patients during surgery.
11.The lamp cover is made of new high-quality ABS material, which is corrosion-resistant and acid and alkali-resistant, effectively increasing the product's lifespan. The centrally located handle can withstand high-temperature and high-pressure steam sterilization at 134℃.


LED Surgical Light Application:
Surgical lights are used in operating rooms and examination rooms to provide bright, clear, and shadow-free illumination of a patient's body during a medical procedure.


Intelligent Surgical Light With Auto Shadow Compensation & Dual Lamp Control 0
