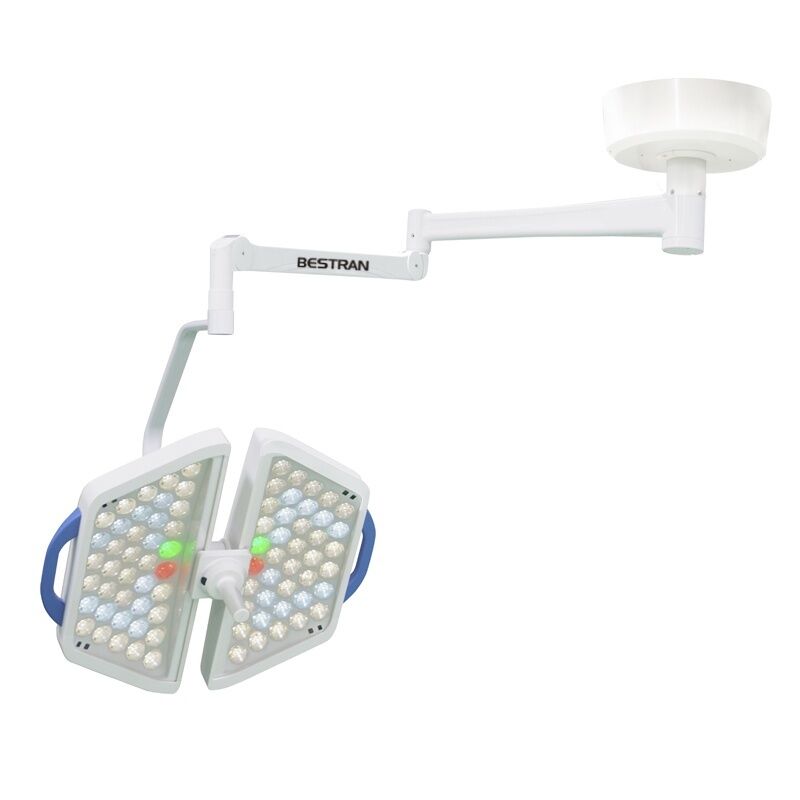

Ultra-Thin LED Surgical Light with Diamond Lens, 360° Arm & Laminar Flow Design
1. Superior Optics with Diamond Surface Lens
Enhanced Clarity & Efficiency: The diamond-surface lens design delivers higher luminous efficiency and reduced glare for exceptional visual acuity and true tissue differentiation.
Dual-Lens Precision: Each individual LED is paired with a dedicated focusing lens, ensuring uniform, deep-cavity illumination with outstanding shadow reduction.
2. Ultra-Thin, Laminar Flow Optimized Design
Certified Infection Control: The ultra-thin, hollow lamp head is engineered for minimal airflow disruption, fully compliant with DIN1946-4 standards for laminar flow operating rooms.
Supports Sterile Field Integrity: Its streamlined profile helps maintain unidirectional airflow, actively reducing airborne particle counts in the critical surgical zone.
3. Unmatched Flexibility with 360° Luxury Spring Arm
Effortless, Full-Range Positioning: The sturdy yet lightweight spring arm allows smooth, 360° rotation and precise positioning, adaptable to any surgical approach or OR layout.
Ergonomic Efficiency: Enables rapid, drift-free adjustment without compromising the sterile field, improving workflow for the entire surgical team.
| Illuminance | ≤160000Lux/≤160000Lux |
| Color temperature: | 4000-5700K/4000-5700K |
| Color reduction index(Ra) | 85-98 adjustable |
| Size of light field | 160-351mm |
| Illuminance depth | ≥1200mm/≥1200mm |
| Focusing method | Electric/Electric |
| Service life of illuminant | 5100,000h |
| Input Power | 400W |
| Total LED bulb quantity | 160pcs(1W/pc*80pcs+1W/pc*80pcs); |
| Lowest height of installation | 2800mm |
1.Utilizes LED cold light technology; each LED light source has an individual lens for focusing.
2.New Diamond-Surface Lens Design:** Superior optical design, more aesthetically pleasing, higher luminous efficiency, and less glare.
3.Ultra-thin Hollow Lamp Head:** Provides excellent laminar flow penetration. Meets DIN1946-4 requirements for laminar flow operating room infection control.
4.Two Integrated Operating Handles on the Outside of the Lamp Head:** Facilitates movement of the surgical lamp by personnel in non-clean areas, while preventing residual contamination at seams during cleaning by medical staff, ensuring effective sterilization.
5.Luxury Spring Arm:** Sturdy, durable, lightweight, and flexible, allowing the lamp head to rotate easily 360° and be precisely positioned for optimal illumination. The wide range of arm movement makes it suitable for operating rooms with varying architectural conditions.
6.Electronic Focusing Function:** Adjusts the beam pattern via the controller panel.
7.Automatic Illumination Compensation Function:** Humanized intelligent shadow compensation technology automatically compensates for brightness loss in the surgical field when the surgical light is obstructed by the surgeon's head, ensuring ideal illumination for the surgical area.
8.Humanized Intelligent Shadow Compensation Technology:** Lamp head interoperability function: This function allows for control of both the lamp itself and another lamp via the touchscreen. It enables functions such as switching another surgical lamp on/off, adjusting color temperature, brightness, and spot size.
9.RGB color compensation function: R (Red) function: Saturated red corresponds to R9 in the color rendering index. Red light helps to better distinguish blood vessels. Using 610nm red light can promote wound healing and has a therapeutic effect on skin infections. G (Green) function: Saturated green corresponds to R11 in the color rendering index. This function compensates for the R11 value to achieve the full spectrum standard.
10.Suitable for use with LCD display and button control, allowing for adjustment of power, illuminance, and color temperature to meet the brightness requirements of medical staff for different patients during surgery.
11.The lamp cover is made of new high-quality ABS material, which is corrosion-resistant and acid and alkali-resistant, effectively increasing the product's lifespan. The centrally located handle can withstand high-temperature and high-pressure steam sterilization at 134℃.
![]()
