Created with Pixso. Intelligent Surgical Light With Dual Lamp Control & Automatic Brightness Compensation

Intelligent Surgical Light With Dual Lamp Control & Automatic Brightness Compensation

Brand Name: Bestran
Model Number: BT-LED350330
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-7 days
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Surgical Light
Brightness Compensation:
Automatic
Color Temperature:
Yes
Colour Rendering Index:
95
Screen:
Touch
Voltage:
AC100-240V,50-60Hz
Power:
100W
Anti-Corrosion Housing:
ABS
Packaging Details:
1250*630*300mm, 20KG,1pc/plywood case
Supply Ability:
500pcs per Month
Product Description

Intelligent Surgical Light With Dual Lamp Control & Automatic Brightness Compensation


Surgical Light Advantages

1. Synchronized Dual Lamp Control for Enhanced Teamwork

  • Unified Command Center: Control both the primary and secondary surgical lights—including on/off, intensity, color temperature, and spot size—from the touch panel of either light head. This eliminates the need to reach across the sterile field to adjust the second light.

  • Streamlined Workflow: Surgeons and assistants can instantly synchronize lighting conditions, ensuring consistent visibility for the entire surgical team without interruptions or verbal coordination delays.

2. Automatic Brightness Compensation for Uninterrupted Vision

  • Intelligent Shadow Management: Advanced sensors detect when the light path is obstructed (e.g., by a surgeon’s head or instrument) and automatically increase output from unobstructed segments to maintain consistent, ideal brightness in the surgical field.

  • Eliminates Manual Adjustments: This smart compensation happens in real-time, preventing sudden shadows and preserving a perfectly lit operative site throughout the procedure without any manual intervention.

3. Smart Integration for the Modern OR

  • Ensured Lighting Consistency: Guarantees uniform illumination depth and color temperature across both light heads, which is critical for precision in complex, multi-angle procedures.

  • Reduces Cognitive Load: By automating light management and centralizing control, the system allows the surgical team to focus entirely on the procedure, enhancing safety and efficiency.


Surgical Light  Parameter
Illuminance 80000-160000Lux/60000-140000Lux
Color temperature: 3000-6700K/3000-6700K
Color reduction index(Ra) 85-98 adjustable
Size of light field 160-351mm
Illuminance depth ≥1200mm/≥1200mm
Focusing method Electric/Electric
Service life of illuminant 5100,000h
Input Power 400W
Total  LED bulb  quantity 193pcs(112+81)
Lowest height of installation 2800mm



Surgical Light  Description

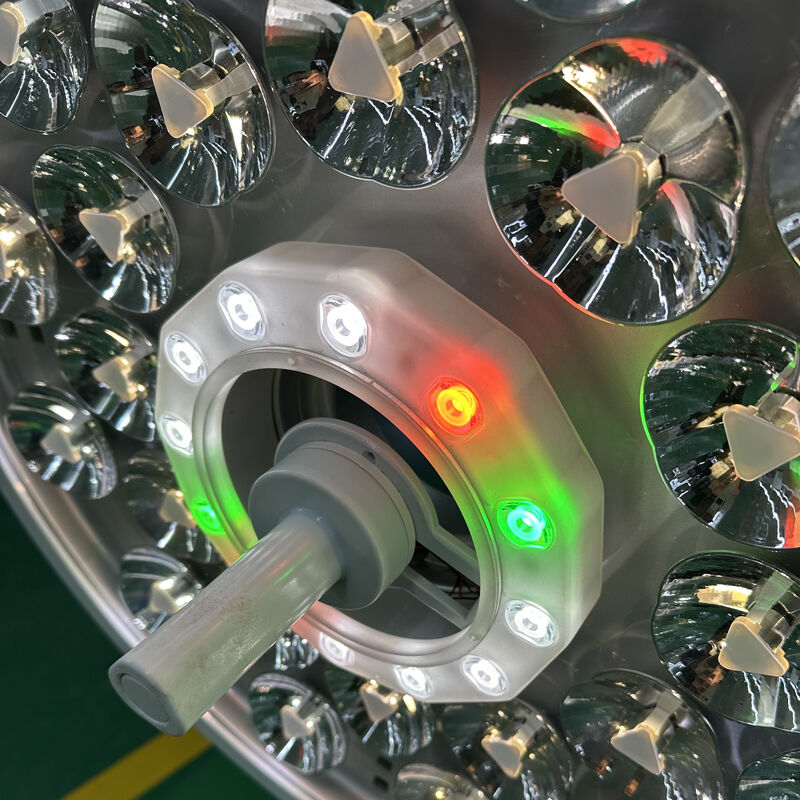

1.The LED light source section consists of 84 LED beads, and the entire lamp adopts a multi focus design with 24 reflective bowls, each consisting of 3 independent light sources.
2.The fully enclosed streamlined ABS lamp shell is carefully crafted based on aerodynamic principles, and the hollow lamp body design has a good laminar flow penetration effect, meeting the modern laminar flow operating room sensing and control requirements of DIN1946-4.
3.The outer side of the lamp head has two integrated operation handrails, which facilitate the movement of the surgical lamp position by personnel in non clean areas. At the same time, medical staff will not leave residual contamination at the seams during cleaning, which will affect the cleaning and disinfection effect.
4.Luxury spring arm, sturdy and durable, lightweight and flexible, can easily rotate the lamp head 360 ° and accurately position it in the ideal position. The lamp arm has a wide range of motion and can be applied to operating rooms under different building conditions.
5.Electronic focusing function: The spot size can be adjusted through the LCD control panel.
6.The humanized intelligent shadow compensation technology with automatic lighting compensation function automatically compensates for the brightness loss of the surgical field when the surgical light is obstructed by the doctor's head, thereby ensuring the ideal lighting brightness of the surgeon's area.
7.The lamp head mutual control function can control the functions of this lamp and another lamp on the touch screen of this lamp. It can also switch on and off another surgical lamp, adjust color temperature and brightness, and spot size on the touch screen of this lamp.
8.Adopting a LCD touch screen, it can adjust power switch, illumination, color temperature, etc. to meet the requirements of medical staff for different patient surgical brightness.
9.The lampshade shell is made of new high-quality ABS material, which is corrosion-resistant, acid and alkali resistant, effectively increasing the product's service life. The central handle can withstand high temperature and high pressure steam sterilization at 134 ℃ and 205.8kPa.


Surgical Light  Application:
Surgical lights are used in operating rooms and examination rooms to provide bright, clear, and shadow-free illumination of a patient's body during a medical procedure.
